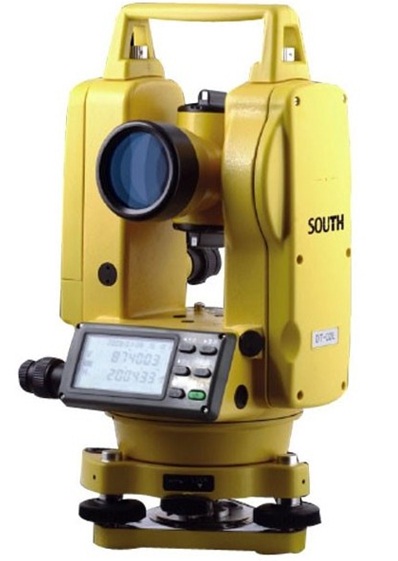

- The ET series electronic theodolite integrates the same high-quality advanced absolute circle reading technology found in South’s high-performance total station products for more accurate field calculations; and they continue to deliver the highest quality optics and electronics you expect to find in South theodolites.
- The ET series electronic theodolite integrates the same high-quality advanced absolute circle reading technology found in South’s high-performance total station products for more accurate field calculations; and they continue to deliver the highest quality optics and electronics you expect to find in South theodolites.
Technical Specification
Specifications ET – 02 ET – 05 Angle Measurement Measuring Method Absolute Code Raster Diameter 79mm Min Display Unit 1″/5″ Selectable Accuracy 2″ 5″ Horizontal Angle Dual Vertical Angle Dual Telescope Image Erect Effective Aperture 45mm (EDM:50mm) Magnification 30x Field of view 1°30′ Minimum Focusing Distance 1.4m Resolving Power 3″ Stadia Ratio 100 Stadia Constant 0 Auto Compensator System Liquid-Electric Detection
Work Range ±3′ Resolving Power 1″ Vial Plate Vial 30″/2mm
Circular Vial 10′/2mm Optical Plummet Image Erect
Magnification 3x Focusing Range 0.5m~∞ Field of View 5° Display Type LCD Display 2 Sides
On-Board Battery Power Supply Rechargeable Ni-H Battery/AA Battery
Voltage DC 6V Continuous Operation Time 10 Hours Size & weight Weight 5.2Kg
