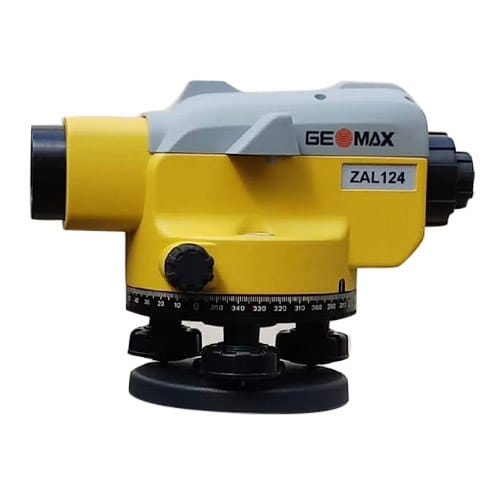

• GeoMax Automatic Level ZAL100 Series

  Suitable for outdoor as well as for indoor use the user friendly ZAL100 Auto Level Series from GeoMax is your guarantee to get the job done, accurate and on time.

  Built to Last
  With the ZAL100 Series GeoMax introduces an automatic level to the construction industry designed for your daily levelling tasks with outstanding price-to-performance ratio.

  Meeting the IP54 class specifications guarantees all weather operation of the ZAL100 Series and provides you with an instrument that “Works when you do!”.

  • 2.0mm/2.5mm (ZAL124/ZAL120) Standard deviation for 1km double-run levelling
  • 24x/20x (ZAL124/ZAL120) Magnification
  • Erect Image
  • Double sided endless drives
  • 36mm clear objective lens
  • Cross hairs with stadia lines
  • Automatic air-damped system
  • ±15’ working range of compensator
  • 360° graduation on horizontal circle
  • -20°C to +40°C operating temperature range
  • Concave and flat base for 5/8” base screw

• Geomax ZAL – 100 Technical Specifications:

  Telescope	ZAL132	ZAL128	ZAL124	ZAL120
  Objective aperture	36 mm clear objective lens
  Magnification	32 x	28 x	24 x	20 x
  Image	Erect
  Field of view	< 2.1 m at 100 m
  Minimum focusing distance	< 1.0 m
  Reticle	Cross hairs, with stadia lines
  Stadia multiplication constant	100
  Stadia additive constant	0
  Compensator
  Damping system	Automatic, air-damped
  Working range	± 15
  Setting accuracy (standard deviation)	< 0.5 ”
  Levelling Accuracy
  Standard deviation for 1km double-run levelling	2.0 mm			2.5 mm
  Horizontal Circle
  Diameter	106 mm
  Graduation / Intervals	360 ° / 1 °
  General
  Sensitivity of circular bubble	8 ’ / 2 mm
  Mirror for circular level	Plane mirror
  Horizontal fi ne motion screws	Double-sided endless drive
  Dust and Water resistance	Conforms to IP54 (IEC60529)
  Base / Base screw	Concave and fl at / 5/8
  Weight	1.5 kg
  Operating temperature range	-20 ° C to +40 ° C

•
