Jogger-24 (Leica)

Leica Jogger

Our most economical Automatic Levels designed specifically for general construction applications.











  • Feature & Specification

    Fit for Work – Great features and great performance:

    • Choice of magnification: 20x/24x/28x or 32x
    • Automatic, air-damped compensator
    • Smooth, double-sided endless fine drive for easy and precise targeting
    • Horizontal circle with 360° division

    Fit for Work – Quality and Endurance:-

    Water resistant (IP54) for instrument use under harsh environmental conditions one year

    warranty and access to the worldwide Leica Geosystems network of service and support

           centres.

  • Specification
    Technical Data

    Leica Jogger 20

    Leica Jogger 24

    Leica Jogger 28

    Leica Jogger 32

    Standard deviation per 1 km double-run level

    2.5 mm

    2.0 mm

    2.0 mm

    2.0 mm

    Magnification

    20x

    24x

    28x

    32x

    Shortest focusing distance

    1 m

    1 m

    1 m

    1 m

    Compensator
    Working range
    Setting range

    ±15′
    0.5″

    ±15′
    0.5″

    ±15′
    0.5″

    ±15′
    0.5″

    Operating temperature

    -20°C to +40°C

    -20°C to +40°C

    -20°C to +40°C

    -20°C to +40°C

    Weight (net)

    1.5 kg

    1.5 kg

    1.5 kg

    1.5 kg

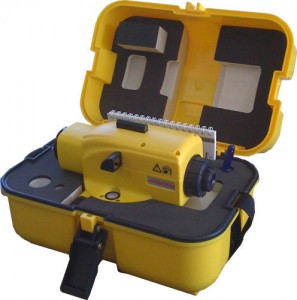

  • Leica Joggerleica_jogger_In_Case
  • Download Product Details
